Roof On Roof Bracket Specs

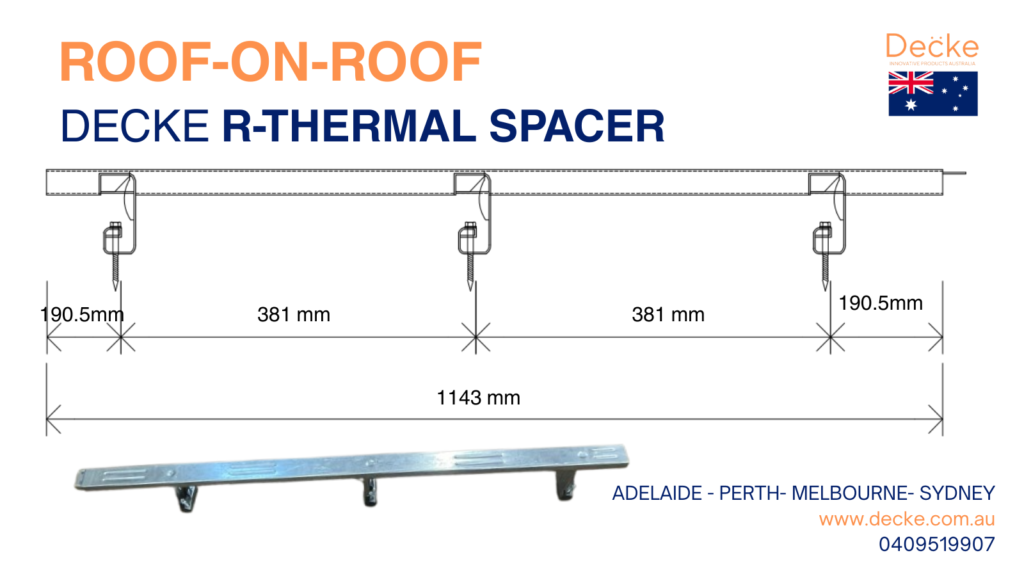

1143 mm long with 150mm, 120mm, 80mm, 60mm height variants
Leg spacing in multiples of 190.5mm to accommodate Trimdek underlay.
1.2mm steel & 3 legs Pre-loaded with 6 structural screws
Screws at 45 degrees – visible from top
40mm gap between screws- goes on to narrowest of purlins
References available in all states
Compliance To Standards
Non cyclonic- N2, N3, N4 wind classification
Cyclonic C2 & C3 wind classification
AS 1170.0 Structural design actions – General principles
AS 1170.1 Permanent, Imposed and Other Actions
AS 1170.2 Structural Design Actions – Wind Actions
AS 2179.1 Specifications for Rainwater Goods Accessories and Fasteners -Metal Shape
AS 3500.3 Plumbing and Drainage – Stormwater Drainage
AS 4600 Cold Formed Steel Structures
